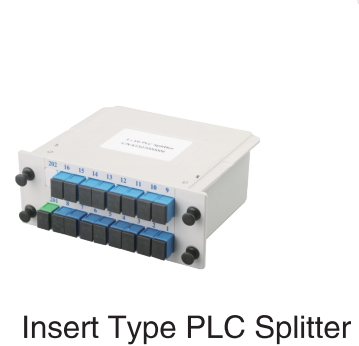

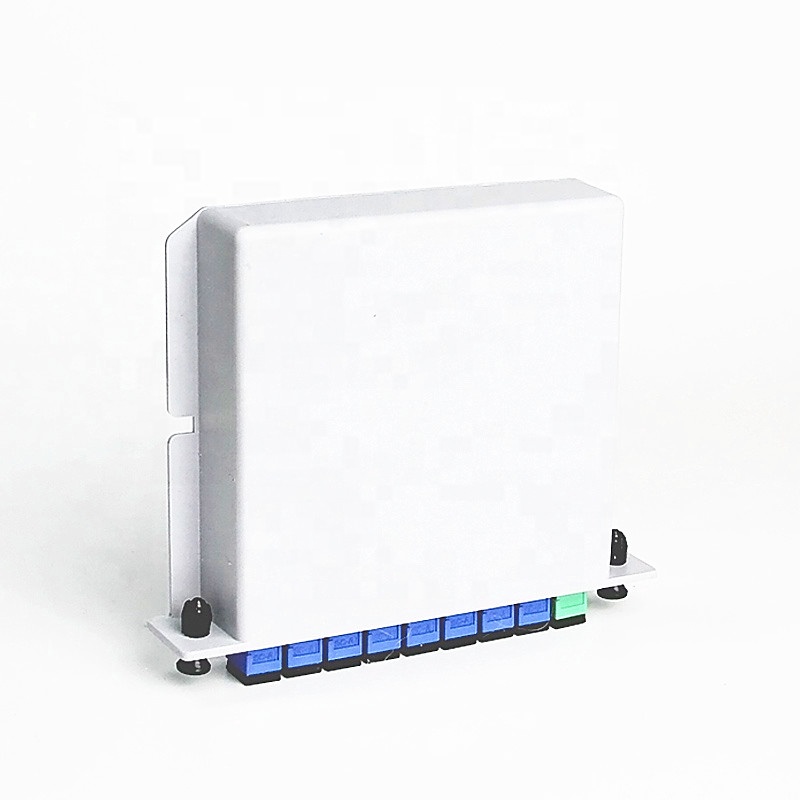

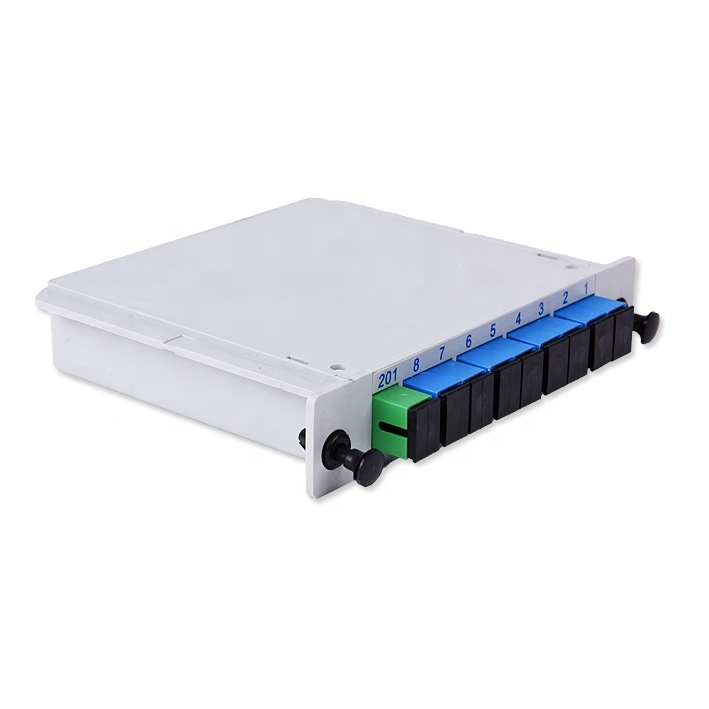

PLC Splitters Plastic & Casstte Package
PLC Splitters SS. Tube Package 1*2/1*4/4*8/1*16/1*32/1.*64/2*8/2*12 etc.
Product Details
Specification
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | |||||
| Storage Temperature (°C) | -40~85 | |||||
| Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
Notes:1.Specified without connectors.
2.Add an additional 0.2dB loss per connector
Details
- Model Number:
- PLC splitter
- Type:
- PLC splitter
- Place of Origin:
- Fujian, China
- Package:
- Plastic Box
- Use:
- FTTH
- Port:
- 1x2,1x4,1x8,1x16,1x32,1x64, 2x4,2x8
- Operating Wavelength(nm):
- 1260~1650
- Return Loss (dB):
- 55/50
- Operating Temperature:
- -40~+85
- Directivity (dB):
- ≥ 55
- Storage Temperature:
- -40~+85
- Fiber Type:
- G657A1
- Size:
- Customized request
- Fiber Length:
- 1m,1.5m or customized
- Model:
- bare/fan-out/module/insert/tray/chasis type
- Application:
- GPON/Epon
