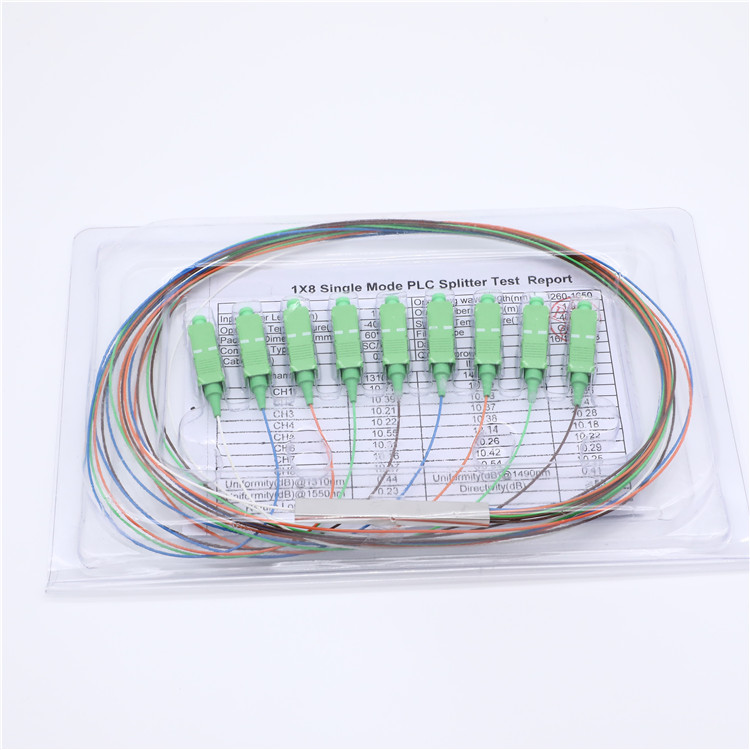

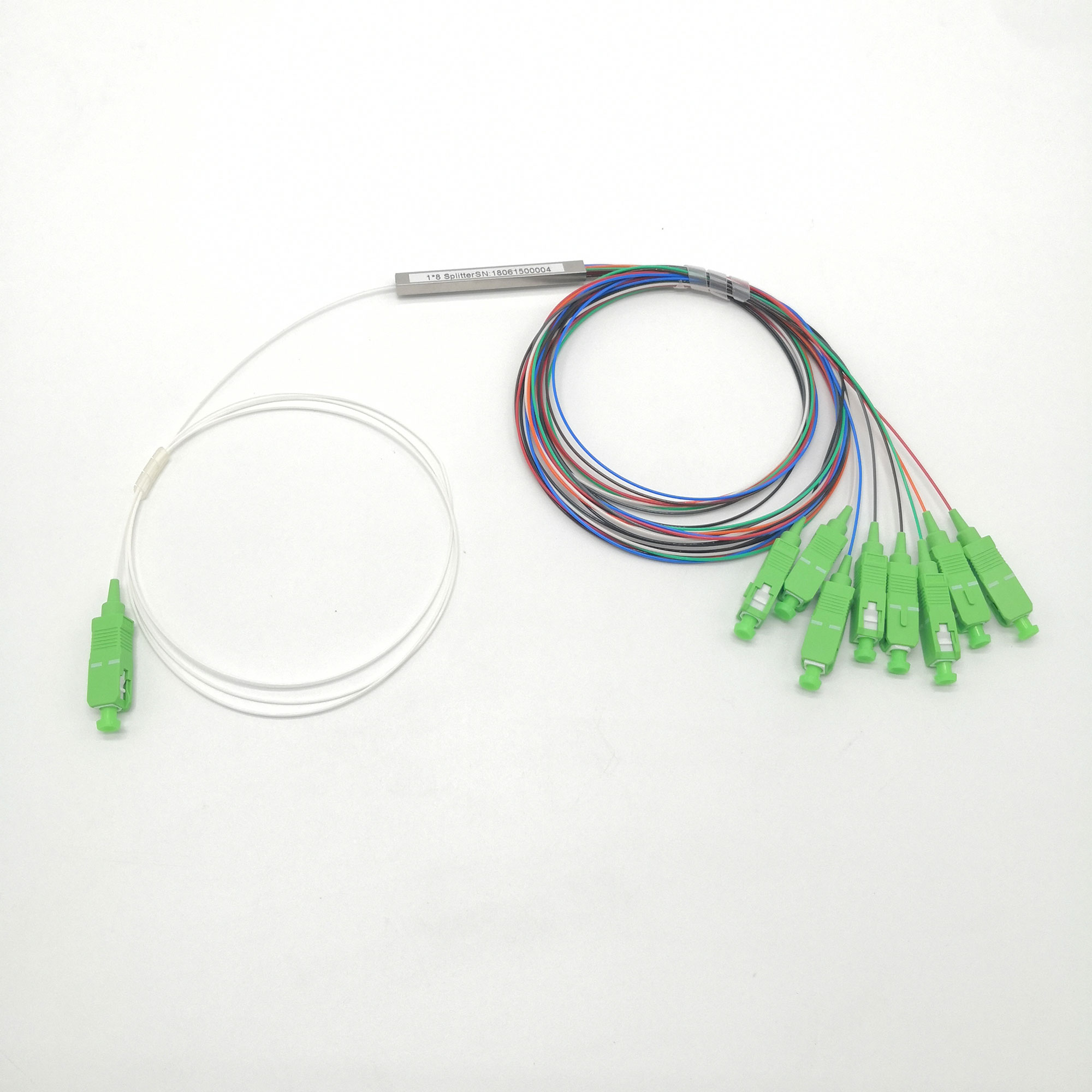

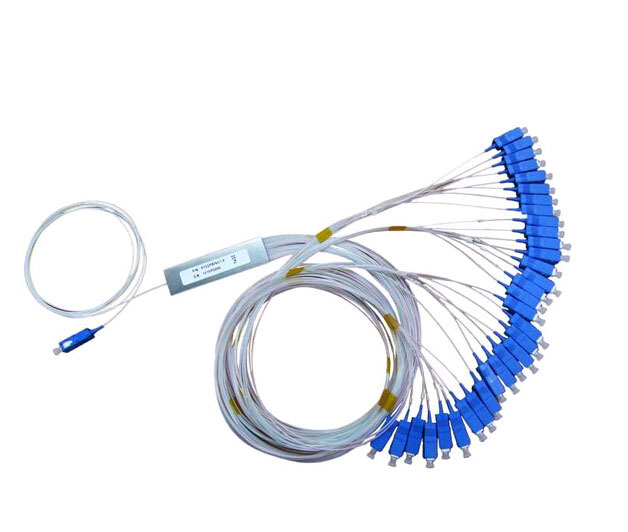

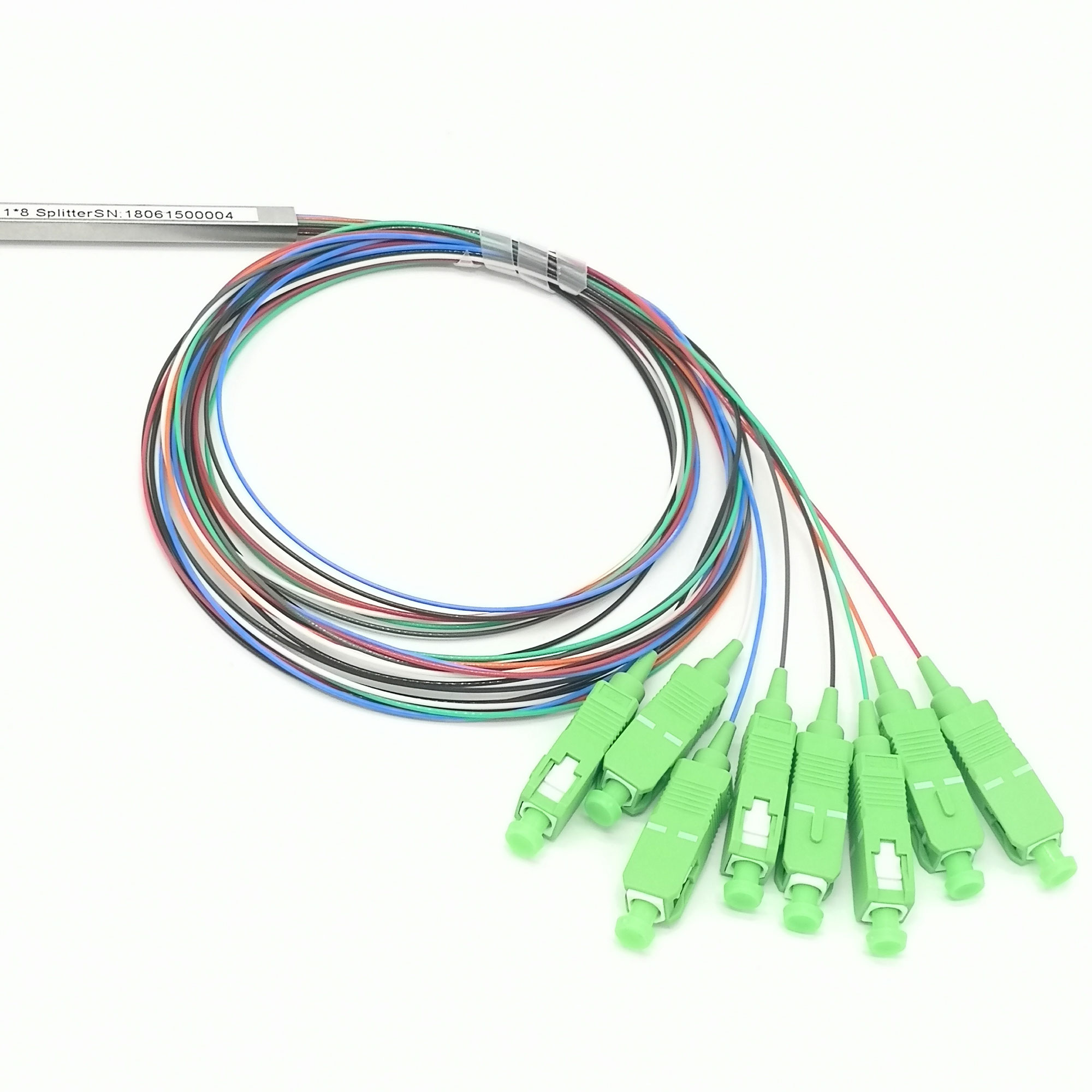

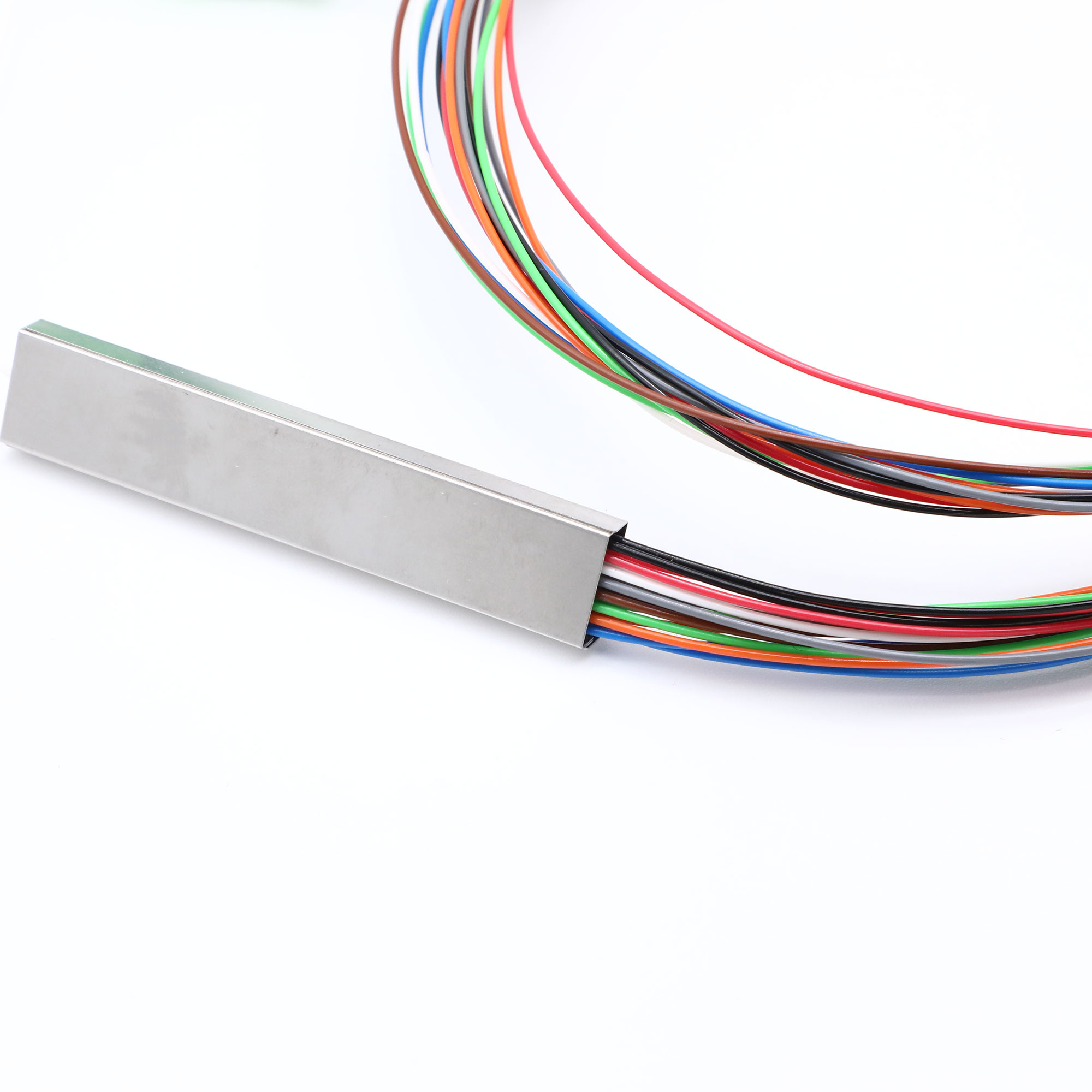

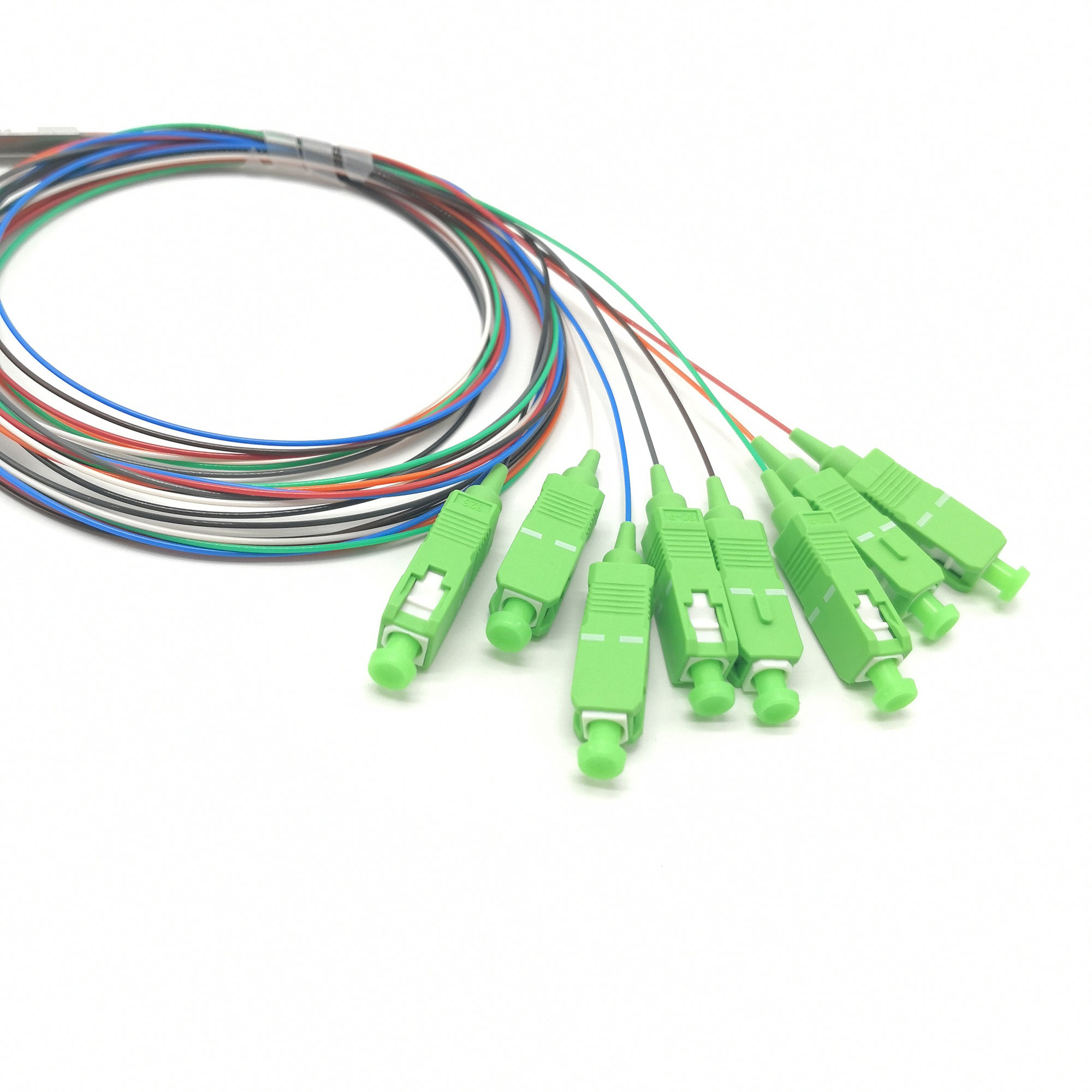

PLC Splitters Mini(SS) Tube Package

Fiber Jumpers & Enclosures

MPO/MTP Patch Cords MPO/MTP Assemblies & Cassette FTTA Patch Cords Fiber Patch Cords Pigtail Fiber Adapter Fiber Patch Panel

Pre-Terminated Fiber Assemblies

Indoor Cable FTTH Drop Cable FTTA Cable( Base Station) Waterproof Pigtail Cable Fiber Cable for Field Operation Tube Outdoor Cable

WDM&PLC

WDM PLC

Network Solutions

Velcro Cable Ties & Cable Plate

Velcro Cable Ties

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4
