Product display Your current location：Home > Product display > ODVA LC OS2 Singlemode Fiber Optic Patch Cords LSZH for FTTA

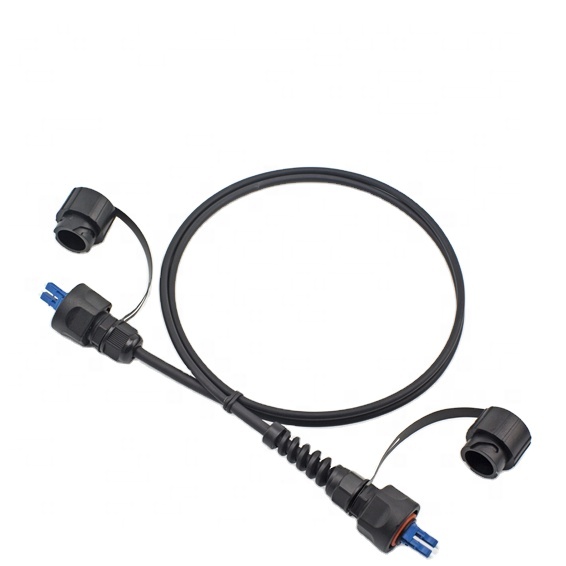

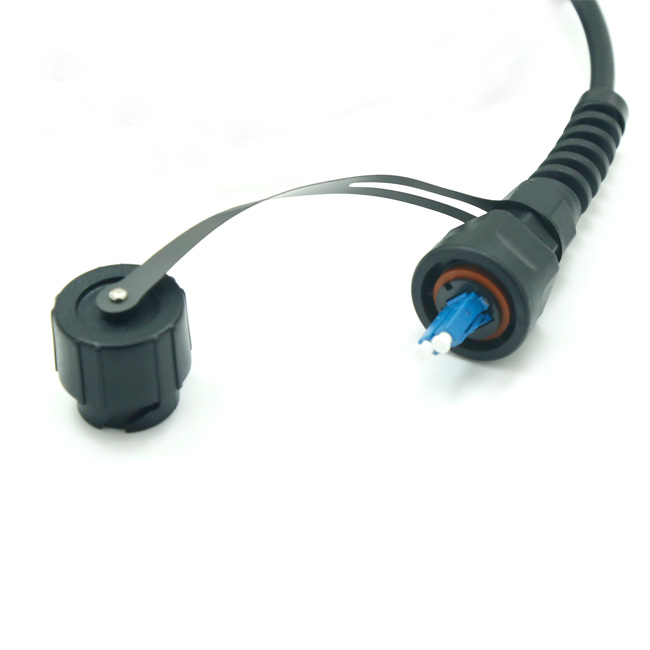

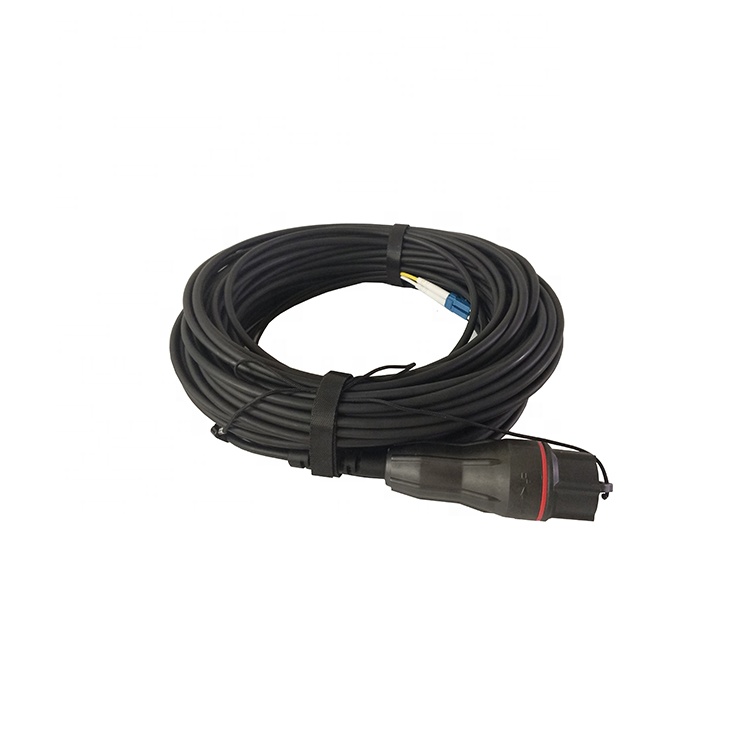

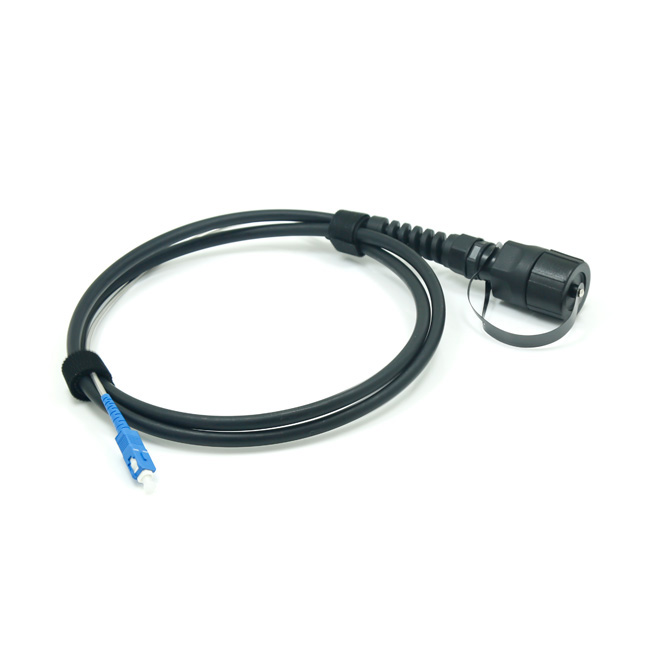

ODVA LC OS2 Singlemode Fiber Optic Patch Cords LSZH for FTTA

FTTA ODVA Patch Cord widely used in harsh environmental conditions when being used in an outdoor application, duplex round far transmission outdoor cable, waterproof and dust condition. The LC/SC/MPO open bulkhead for easy access to SFP Module to realize the signal path from BBU to RRU.

Product Details

Application:

· Between distribution box and RRH

· Remote Radio Head cell tower applications

· Mobile routers and internet hardware

· FTTA, FTTH, WIMAX, FTTP

Features:

· Easy install

· Low insertion loss, high return loss

· End-face geometry and quality superior to IEC and Telcordia standards

· RoHS and REACH compliant.

Waterproof Grade	IP67
Outer Jacket	LSZH/PE
Connector Type	ODVA/Senko IPLC
Outer Diameter	3.0/4.8/5.0mm/7.0mm
Fiber Count	2 Cores

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

ODVA LC OS2 Singlemode Fiber Optic Patch Cords LSZH for FTTA

Product Details

Application:

· Between distribution box and RRH

· Remote Radio Head cell tower applications

· Mobile routers and internet hardware

· FTTA, FTTH, WIMAX, FTTP

Features:

· Easy install

· Low insertion loss, high return loss

· End-face geometry and quality superior to IEC and Telcordia standards

· RoHS and REACH compliant.

Waterproof Grade	IP67
Outer Jacket	LSZH/PE
Connector Type	ODVA/Senko IPLC
Outer Diameter	3.0/4.8/5.0mm/7.0mm
Fiber Count	2 Cores

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
