Product display Your current location:Home > Product display > LC Duplex OS2 Single Mode LSZH FTTA Outdoor Fiber Patch Cable for Base Station

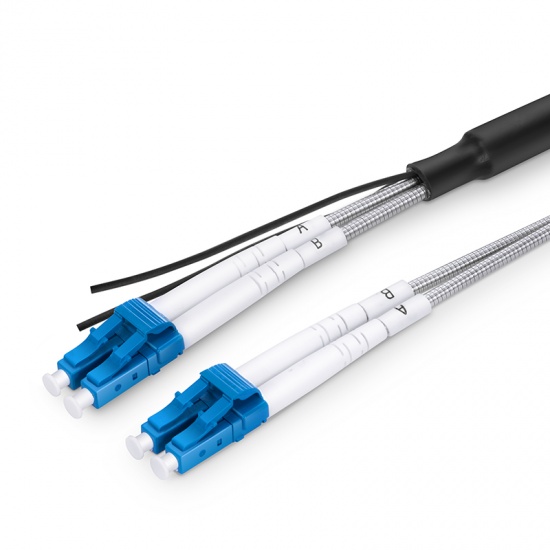

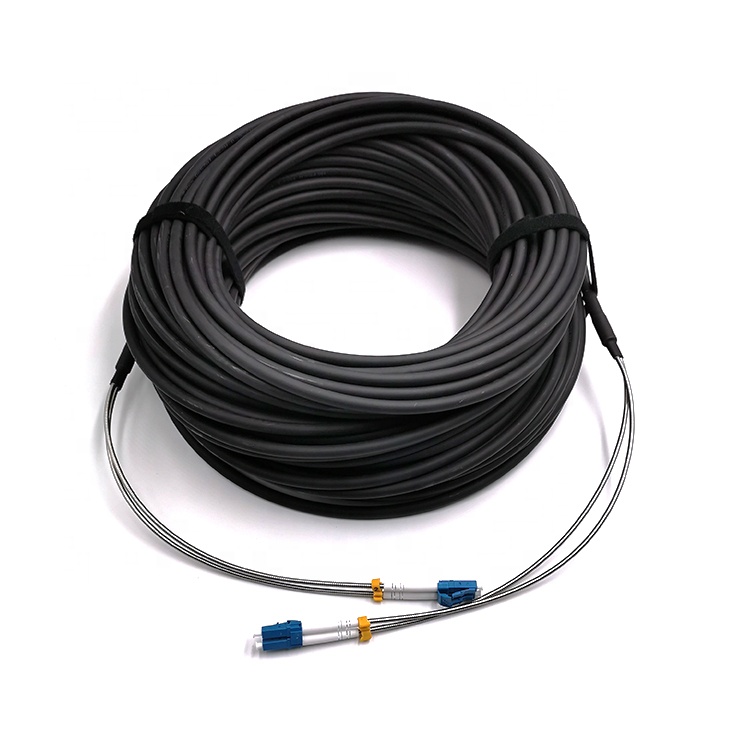

LC Duplex OS2 Single Mode LSZH FTTA Outdoor Fiber Patch Cable for Base Station

CPRI fiber patch cord for the new generation wireless base stations(WCDMA/TD-SCDMA/WiMax/GSM). It can meet the FTTA(fiber to the top of the tower) and FTTH program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G, and WiMax base stations and Remote Radio Head cell tower applications.

Product Details

Application:

· Between distribution box and RRH

· Remote Radio Head cell tower applications

· Mobile routers and internet hardware

· FTTA, FTTH, WIMAX, FTTP

·

Features:

· Easy install

· Low insertion loss, high return loss

· End-face geometry and quality superior to IEC and Telcordia standards

· RoHS and REACH compliant.

Type

SM-UPC

SM-APC

MM-UPC



Typical

MAX

Typical

MAX

Typical

MAX

Insertion loss

≤0.1

≤0.3dB

≤0.15

≤0.3dB

≤0.05

≤0.3dB

Return loss

≥50dB

≥60dB

≥30dB

Durability

500 mating cycles

Working temperature

-40 to + 85℃
