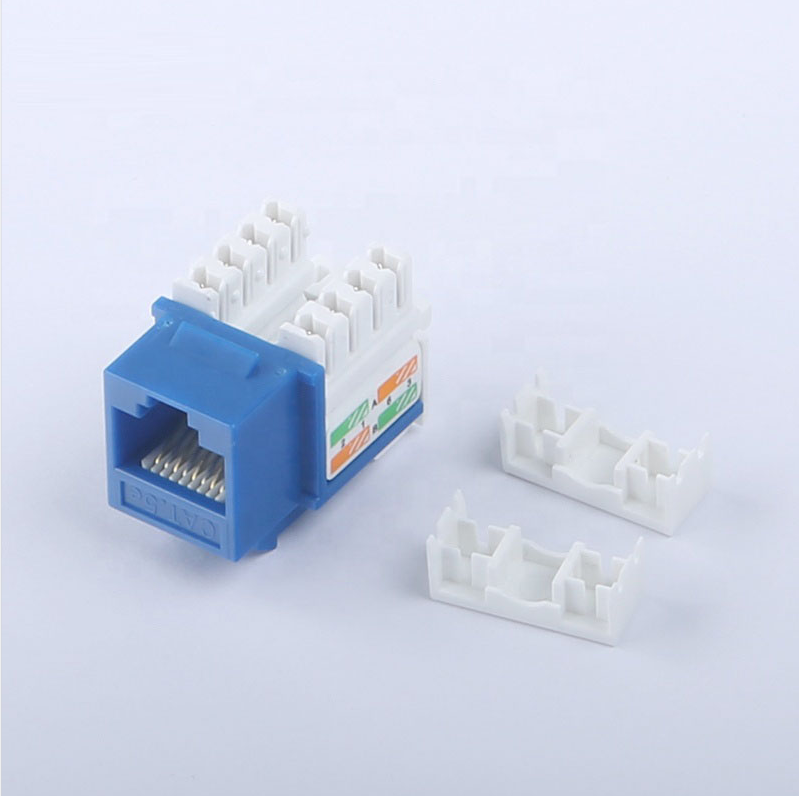

UTP Cat6 keystone jack Punch Down Keystone Jack 90 Degree

CAT.6 RJ45 8p8c UTP Unshielded 90 degree Keystone Jack for Patch Panel

Product Details

CAT.6 RJ45 8p8c UTP Unshielded 90 degree Keystone Jack


Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0

Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N
