Your current location：Home > Product display > Cat6 UTP RJ45 Keystone Jack 90 degree

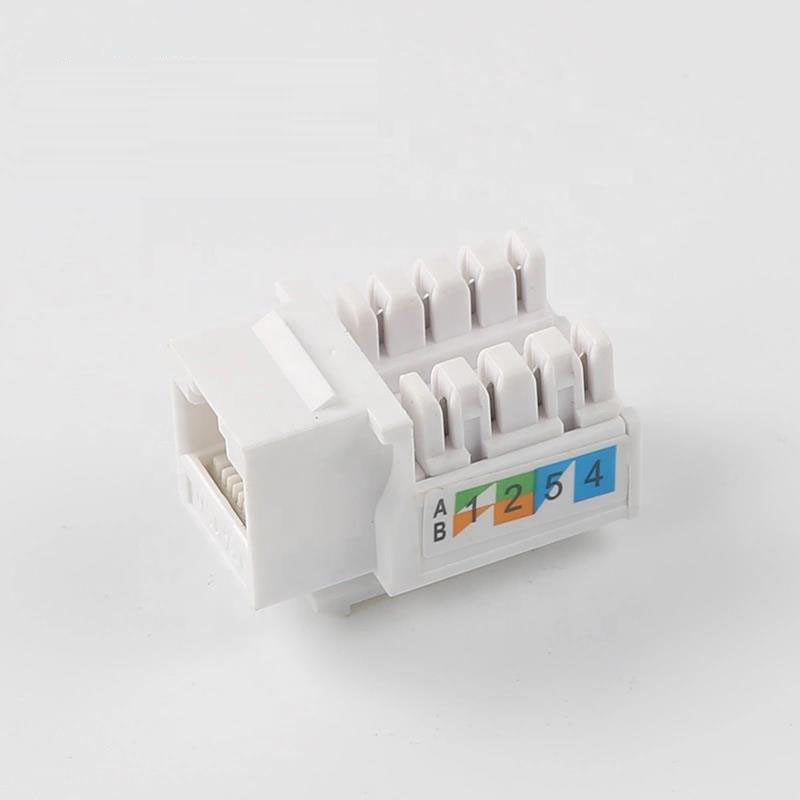

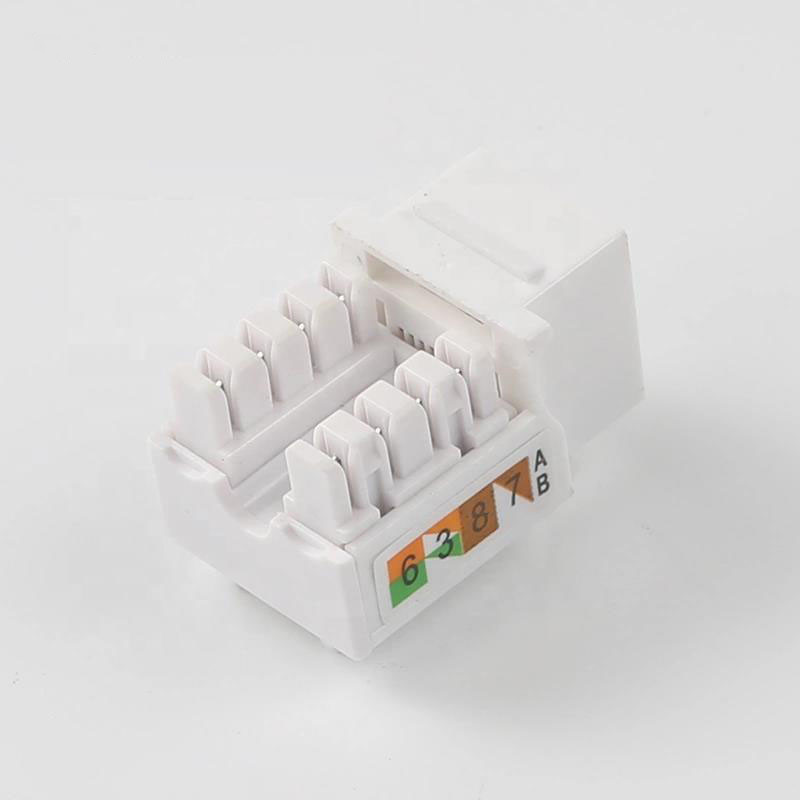

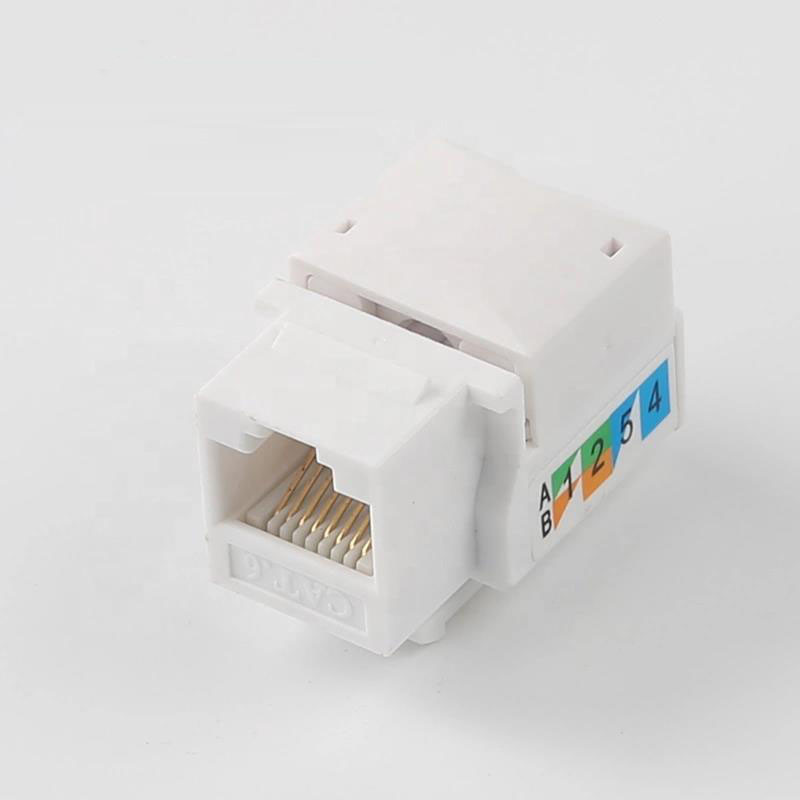

Cat6 UTP RJ45 Keystone Jack 90 degree
Cat6 UTP RJ45 Keystone Jack 90 degree
Product Details
Product details
CAT.6 RJ45 8p8c UTP Unshielded Keystone Jack 90 degree
Features:
Housing: High-impact Flame Retardant Polycarbonate,UL94V-0
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N
