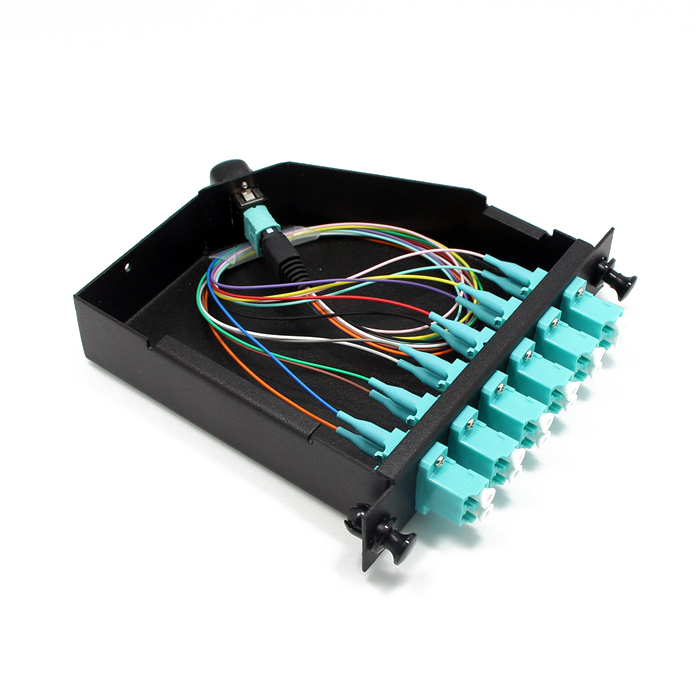

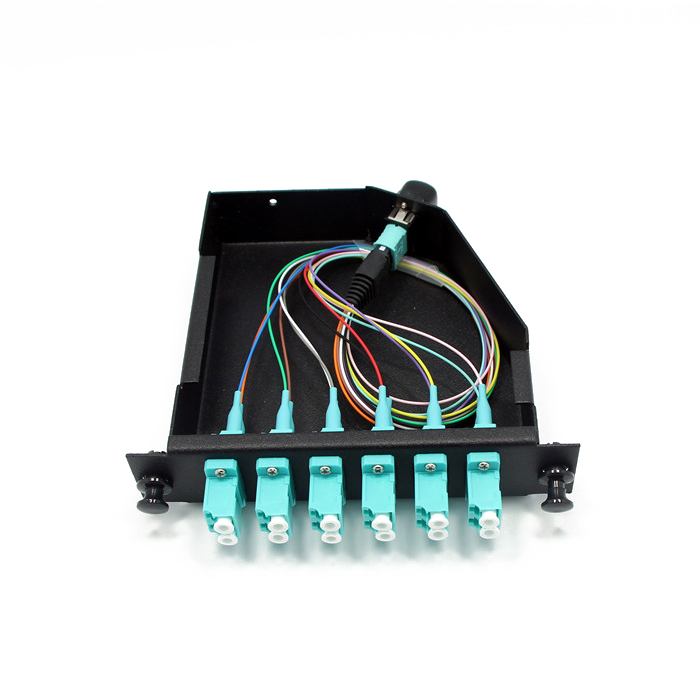

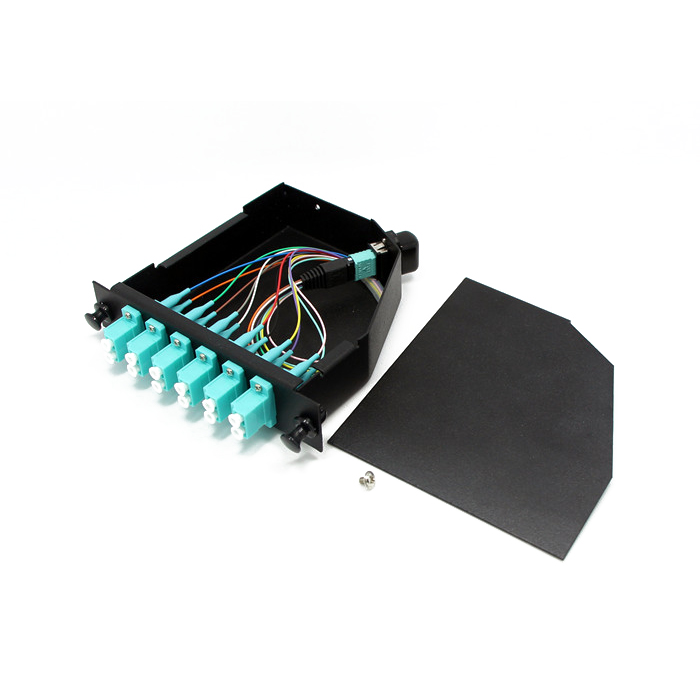

12f , 24f MPO/MTP Cassette Angle Full Loaded

Fiber Jumpers & Enclosures

MPO/MTP Patch Cords MPO/MTP Assemblies & Cassette FTTA Patch Cords Fiber Patch Cords Pigtail Fiber Adapter Fiber Patch Panel

Pre-Terminated Fiber Assemblies

Indoor Cable FTTH Drop Cable FTTA Cable( Base Station) Waterproof Pigtail Cable Fiber Cable for Field Operation Tube Outdoor Cable

WDM&PLC

WDM PLC

Network Solutions

Velcro Cable Ties & Cable Plate

Velcro Cable Ties

Mechanical and environmental characteristics
Project	Parameter
Operating temperature	-25°C~+70°C
Storage temperature	-25°C~+70°C
Relative humidity	≤85%（+30°C）
Color	Black
Max. Capacity	6/12 ports (LC)

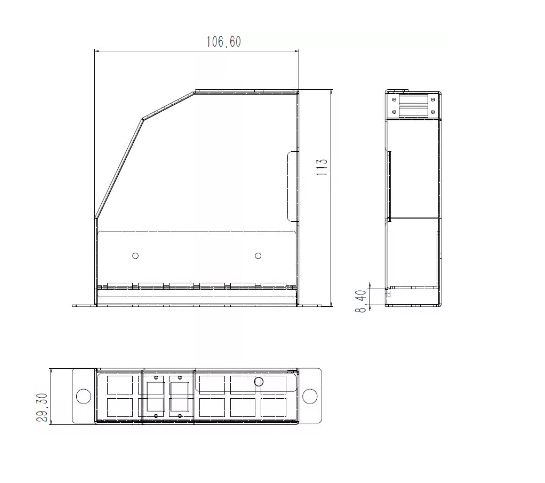

Dimension(LWH)	116.513030mm

Fiber Count	12/24f
Front(Adapter)	6 ×LC Duplex (12f) 12 × LC Duplex (24f) 6 × LC Quad(24f) 6 × SC Duplex(12f)
Rear(Adapter)	1× 12f 2×12f 1×24f
Fiber Type	SM 9/125 OS2 OM1 62.5/125 OM2 50/125 OM3 50/125 OM4 50/125
Insertion loss	MPO/MTP Elite(SM) ≤0.35dB	LC/SC Elite≤0.1dB
	MPO/MTP(SM) ≤0.7dB
	MPO/MTP Elite(MM) ≤0.35dB	LC/SC≤0.2dB
	MPO/MTP(MM) ≤0.5dB
Return loss	MTP/MPO Elite(SM): 60dB	LC/SC Elite≥60 dB
	MTP/MPO(SM): 40dB	LC/SC≥ 30dB
