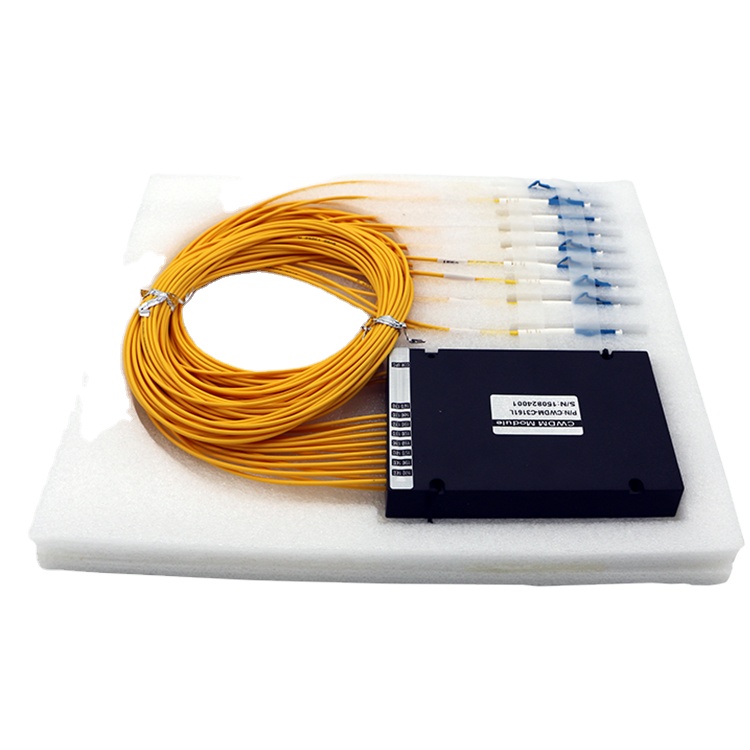

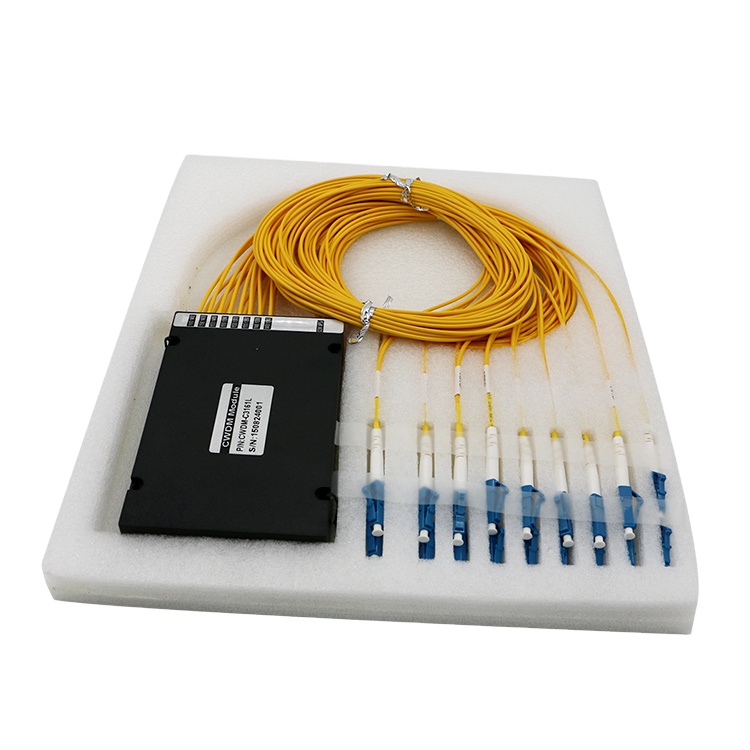

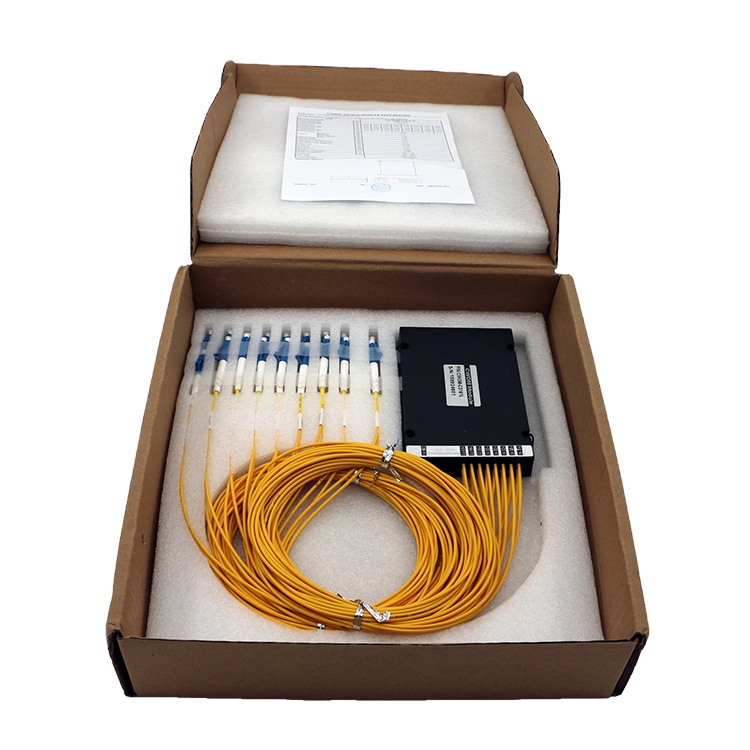

CWDM MODULE MUX DEMUX For Base Station

Fiber Jumpers & Enclosures

MPO/MTP Patch Cords MPO/MTP Assemblies & Cassette FTTA Patch Cords Fiber Patch Cords Pigtail Fiber Adapter Fiber Patch Panel

Pre-Terminated Fiber Assemblies

Indoor Cable FTTH Drop Cable FTTA Cable( Base Station) Waterproof Pigtail Cable Fiber Cable for Field Operation Tube Outdoor Cable

WDM&PLC

WDM PLC

Network Solutions

Velcro Cable Ties & Cable Plate

Velcro Cable Ties

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength(nm)		1270~1610
Center wavelength Accuracy(nm)		±0.5
Channel Spacing(nm)		20
Channel Pass band(@-0.5dB bandwidth (nm)		>14
Insertion Loss(dB)		≤1.4		≤2.6		≤5.0
Channel Uniformity (dB)		≤0.5		≤0.5		≤0.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (PS)		<0.1
Directivity (dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		500
Operating Temperature(℃)		-5~+75
Storage Temperature (℃)		-40~85
Package dimension(mm)		1. L100 x W80 x H10 ( 2 CH~8CH Module)
		2. L120xW800xH18 (9 CH~18CH Module)

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength(nm)		1270~1610
Center wavelength Accuracy(nm)		±0.5
Channel Spacing(nm)		20
Channel Pass band(@-0.5dB bandwidth (nm)		>14
Insertion Loss(dB)		≤1.4		≤2.6		≤5.0
Channel Uniformity (dB)		≤0.5		≤0.5		≤0.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (PS)		<0.1
Directivity (dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		500
Operating Temperature(℃)		-5~+75
Storage Temperature (℃)		-40~85
Package dimension(mm)		1. L100 x W80 x H10 ( 2 CH~8CH Module)
		2. L120xW800xH18 (9 CH~18CH Module)

Specifications
