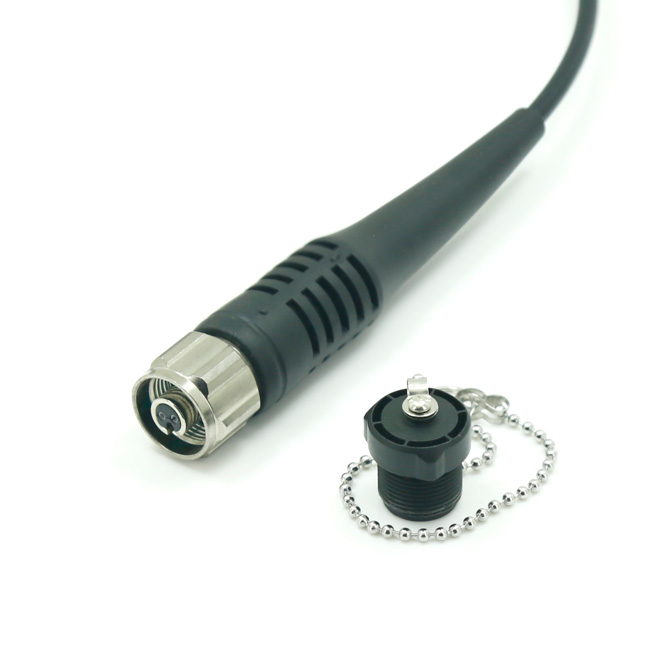

ODC duplex OS2 Singlemode Patch Cords LSZH for Base Station
Product Details
Application:
· Between distribution box and RRH
· Remote Radio Head cell tower applications
· Mobile routers and internet hardware
· FTTA, FTTH, WIMAX, FTTP
·
Features:
· Easy install
· Low insertion loss, high return loss
· End-face geometry and quality superior to IEC and Telcordia standards
· RoHS and REACH compliant.
IP67 |
| |
Outer Jacket | LSZH/PE |
|
Connector Type | ODC |
|
Outer Diameter | 3.0/4.8/5.0mm |
|
Fiber Count | 2 Cores |
|
Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX |
Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
Return loss | ≥50dB | ≥60dB | ≥30dB | |||
Durability | 500 mating cycles | |||||
Working temperature | -40 to + 85℃ | |||||
