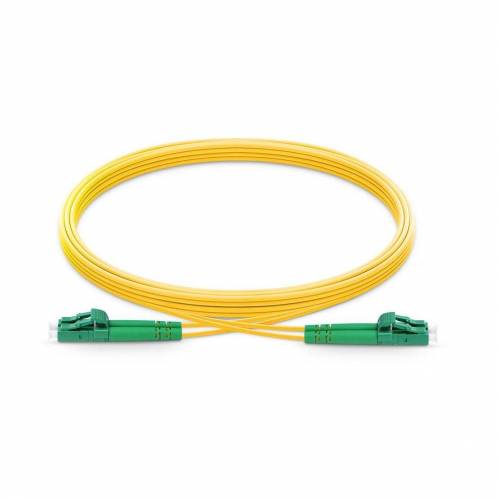

LC UPC to LC APC Duplex OS2 Single Mode PVC 2.0mm/3.0mm Fiber Optic Patch Cord

YOFC/Corning Fiber

Product Details

Application:

1.Telecommunications

2.CATV, LAN, MAN, WAN, Test &Measurement

3.Military industry

4.Medical





Feature

1.Low insertion loss and back reflection loss

2.Ferrule end surface pre-domed

3.Excellent mechanical endurance

4.Good in repeatability

5.Good in exchange

6.Green Production, CE, RoHS Standard

Mode

Single mode

Multimode

Polish

UPC

APC

PC

Insertion Loss

≤0.30dB

≤0.20dB

≤0.20dB

Return Loss

≥50dB

≥60dB

≥35dB

Test Wavelength

1310/1550nm

850/1310nm

Durability(500 Matings)

≤0.2dB

Operating Temperature

-40~+60

Storage Temperature

-45~+85

Fire Resistant

IEC 60794-2-30

Standards-Compliant

ROHS,IEC and GR-326
