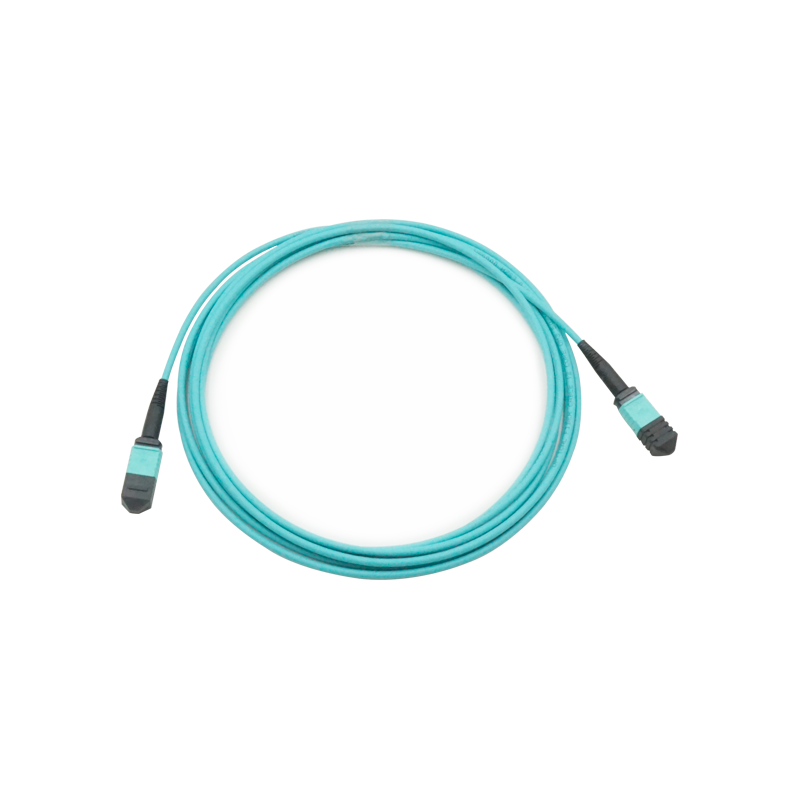

MPO/MTP to MPO/MTP Trunk Cable MM OM3/OM4

Fiber Jumpers & Enclosures

MPO/MTP Patch Cords MPO/MTP Assemblies & Cassette FTTA Patch Cords Fiber Patch Cords Pigtail Fiber Adapter Fiber Patch Panel

Pre-Terminated Fiber Assemblies

Indoor Cable FTTH Drop Cable FTTA Cable( Base Station) Waterproof Pigtail Cable Fiber Cable for Field Operation Tube Outdoor Cable

WDM&PLC

WDM PLC

Network Solutions

Velcro Cable Ties & Cable Plate

Velcro Cable Ties

Performance			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

Note: 1.Test wavelength:SM@1310/1550nm,MM@850/1300nm; 2.Standard conformance: GR-326,GR-1435.

Performance			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

Note: 1.Test wavelength:SM@1310/1550nm,MM@850/1300nm; 2.Standard conformance: GR-326,GR-1435.
